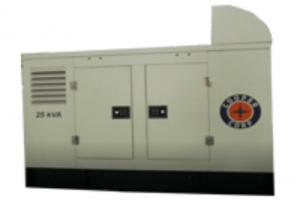

25 KVA GENSETS
Another part of the mini series the 25 kVA gensets are ideal for your homes, ATMs, stores etc. The rugged nature of these gensets ensures that they work in harsh temperatures at full capacity.
GENSET SPECIFICATIONS
Power Rating (kVA) | 25 |
Power Rating (KW) | 16 |
Current (Amperes) | 108.7/34.8 |
No. of Phase | 3 |
Power Factor | 0.8 |
Canopy Dimension (LxWxH) | 1777x826x1398 |
ENGINE SPECIFICATIONS
Engine model | 2A5D1A314CW |
Rate power in kW (hp) | 31.4(42.7) |
Aspiration | TCIC |
Cooling System | Liquid Cooled |
Starting System | 12 V Electrical |
Governing | Mechanical |
No. of Cylinders | 2 |
BorexStroke (mm) | 87×100 |
Displacement (Liters) | 1.189 |
Engine speed (RPM) | 3000 |
Compression Ratio | 17.5:1 |
Fuel Tank Capacity (Liters) | 75 |
Lube oil specifications | 15W40 Ci4+ |
Lube oil Capacity (Liters) | 4.5 |
Total Coolant Capacity (Liters) | 5.5 |
Genset Dry Weight (kgs) | 850 |
