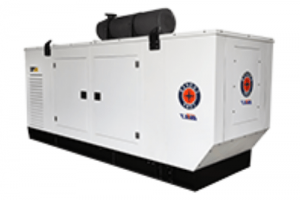

160 KVA GENSETS
The 160-kVA diesel generator used for industrial purposes comes in a compact size and can provide a great deal of power for a long period of time. With a high block load capability this genset can push itself even in harsh weathers and provide a steady performance for long durations.
GENSET SPECIFICATIONS
Power Rating (kVA) | 160 |
Power Rating (KW) | 128 |
Current (Amperes) | 222.6 |
No. of Phase | 3 |
Power Factor | 0.8 |
Canopy Dimension (LxWxH) | 4302x1460x1913 |
ENGINE SPECIFICATIONS
Engine model | 6B5D1C170RW |
Rate power in kW (hp) | 170(231) |
Aspiration | TCIC |
Cooling System | |
Starting System | |
Governing | |
No. of Cylinders | 6 |
BorexStroke (mm) | 107/145 |
Displacement (Liters) | 6.8 |
Engine speed (RPM) | 1500 |
Compression Ratio | 17.5:1 |
Fuel Tank Capacity (Liters) | 300 |
Lube oil specifications | 15W40 Ci4+ |
Lube oil Capacity (Liters) | 11 |
Total Coolant Capacity (Liters) | 22 |
Genset Dry Weight (kgs) | 2670 |
