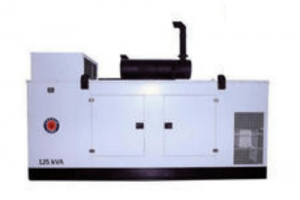

125 KVA GENSETS
The 125 kVA genset is a beast when it comes to high performance. Applications of the genset include hotels, restaurants, office spaces etc. this low noise and compact engine has a high demand across the nation and abroad.
GENSET SPECIFICATIONS
Power Rating (kVA) | 125 |
Power Rating (KW) | 100 |
Current (Amperes) | 173.9 |
No. of Phase | 3 |
Power Factor | 0.8 |
Canopy Dimension (LxWxH) | 3500x1100x1700 |
ENGINE SPECIFICATIONS
Engine model | 4B5D1C113RW |
Rate power in kW (hp) | 113(154) |
Aspiration | TCIC |
Cooling System | |
Starting System | |
Governing | Mechanical |
No. of Cylinders | 4 |
BorexStroke (mm) | 107/126 |
Displacement (Liters) | 4.5 |
Engine speed (RPM) | 1500 |
Compression Ratio | 17.5:1 |
Fuel Tank Capacity (Liters) | 300 |
Lube oil specifications | 15W40 Ci4+ |
Lube oil Capacity (Liters) | 8 |
Total Coolant Capacity (Liters) | 17 |
Genset Dry Weight (kgs) | 2200 |
